Nanlux Unveils Motorized Yoke for Evoke 5000B, 2400B
The solution enables wired and wireless pan-and-tilt control for the LED spotlights.

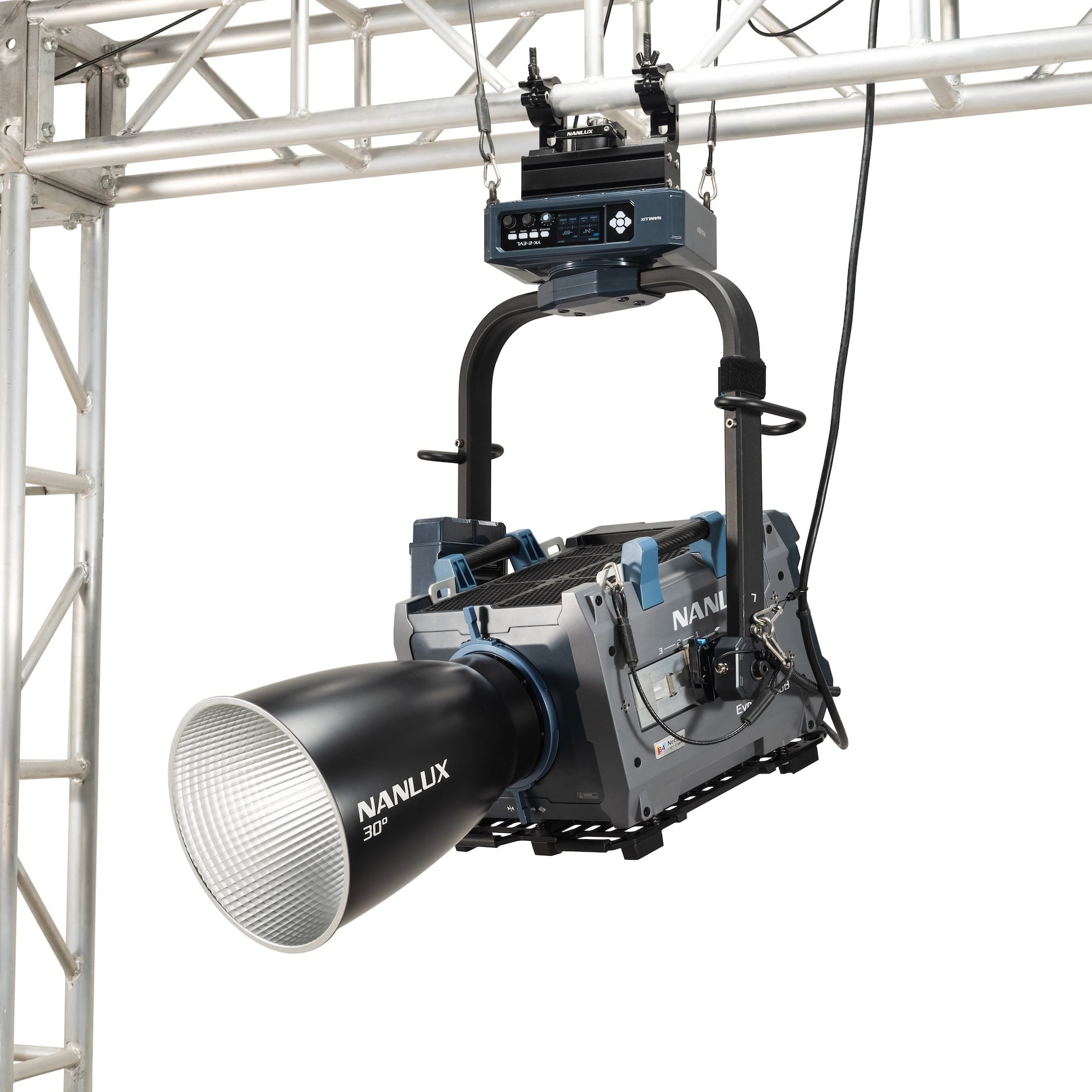

The Nanlux YK-E-EVL Motorized Yoke-L enables pan-and-tilt control for the Evoke 5000B and Evoke 2400B LED spotlights.
The pan covers 540 degrees and completes a full motion in 47 seconds, and the tilt spans 270 degrees and takes 26 seconds to cover its full range. Made of magnesium alloy, the motorized yoke can support heavy setups like the Evoke 5000B attached with the FL-45E Fresnel lens. The motor delivers up to 40 N·m of torque on the tilt axis, enabling smooth adjustments even under heavy loads while maintaining the set angle. An internal self-locking mechanism secures the yoke in position after adjustments are made or when powered off, effectively preventing accidental sag. Manual adjustment is also supported.
The motorized yoke can be directly installed onto light stands with a junior-pin receiver or mounted on trusses up to 2.4" in diameter using the included truss adapter. The EXT, DMX and LAN ports on the control box allow control via the wired controller, DMX/RDM and Art-Net/sACN. Built-in Bluetooth and CRMX modules enable wireless control via the Nanlink App and CRMX-compatible devices.
The Nanlux YK-E-EVL Motorized Yoke-L lists for $2,290, or $2,490 with an optional flight case.
