Elation Releases Fuze PFX

The solution offers the precision of a profile fixture and the creative potential of an effects light.

ASC Staff

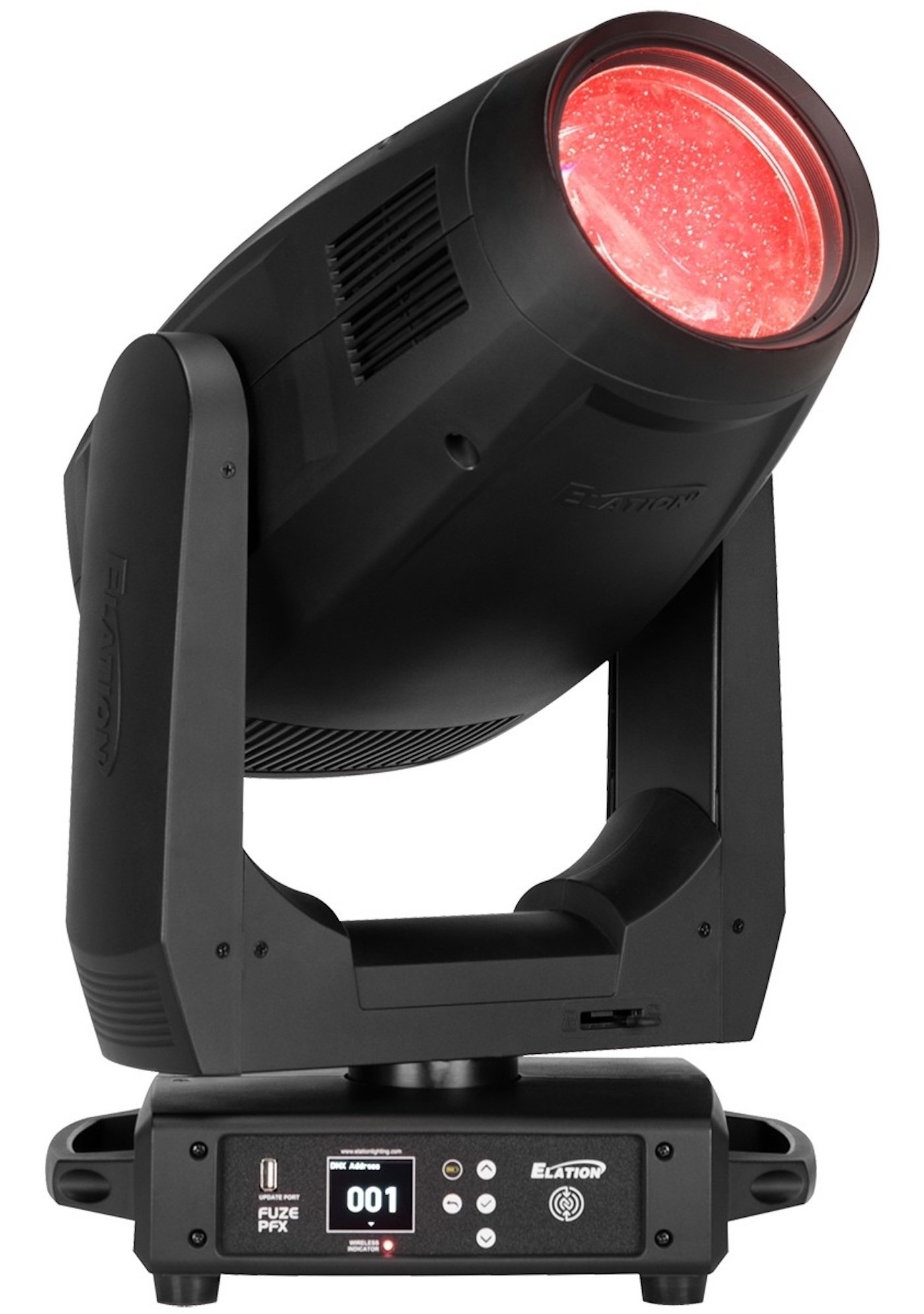

Elation Lighting has released the Fuze PFX, a multi-purpose, automated fixture with a compact footprint.


Delivering 15,000+ lumens of output, the Fuze PFX combines the precision of a profile fixture with the creative potential of an effects light. It includes 18 gobos (seven rotating and 11 fixed) and a zoom range from 3-53 degrees. Two variable frost filters (Light and Wash) allow for even stage washes, while the CMY color mixing with linear CTO correction provides a broad color palette. An eight-position color wheel features high CRI filters (80, 90) and a UV filter for additional flexibility.


The rotatable, full-blackout framing blades offer precise beam shaping. Dual independent, rotating prisms (six-facet linear and six-facet round) can be used together for layered effects, and a fast iris and split CMY/SFX wheel expand the creative toolkit. Additional features include a high-speed electronic shutter, strobe and multiple 16-bit dimming-curve modes.
